| Tên thương hiệu: | Jufeng |
| Số mẫu: | JF-015 |
| MOQ: | 1 unit |
| giá bán: | Contact us |
| Chi tiết bao bì: | Export wooden box |
| Điều khoản thanh toán: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
Jufeng 1.6m³/min Screw Air Compressor Dedicated Refrigerated Dryer
Product introduction
The refrigerated air dryer for screw air compressor is essential for removing moisture, oil vapors, and contaminants from compressed air systems. Our high-performance air dryer ensures ISO 8573-1 Class 4 air quality, protecting your equipment from corrosion and downtime.

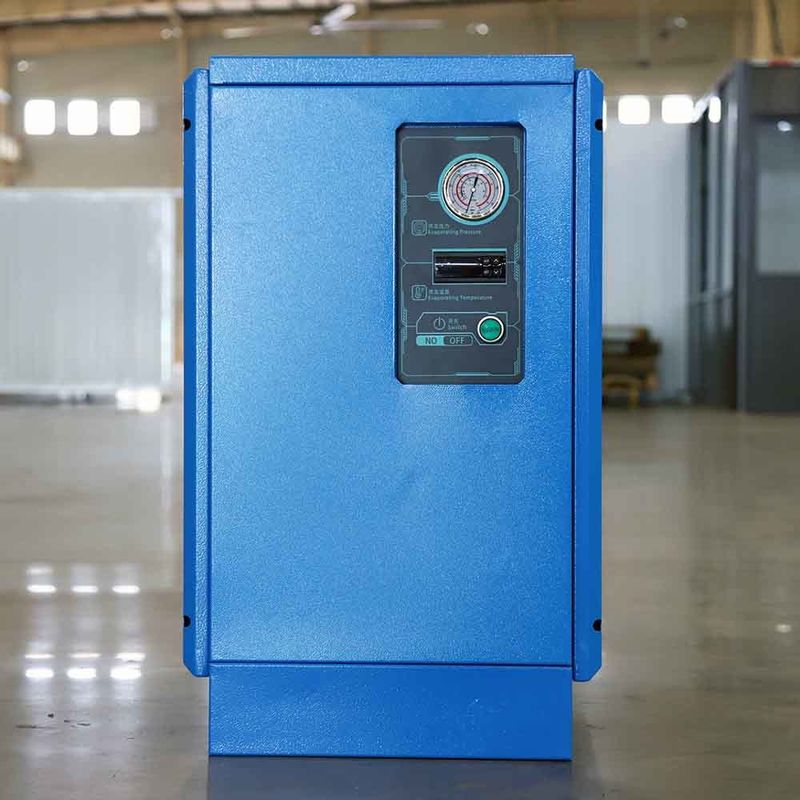

Product photo
Product parameters
| Model | JF-015 | |
| Air handling capacity | 1.6m³/min | |
| Compressed air inlet pressure | 0.7~1.6 Mpa | |
| Air inlet temperature | ≦ 60℃ | |
| Standard ambient temperature | 1~38℃ | |
| Pressure dew point | 2-10℃ | |
| Pressure loss | ≦ 0.018Mpa | |
| Drain valve | Electronic automatic drain valve | |
| Cooling method | Air cooling | |
| Power supply V/PH/Hz | 210~240VAC 50Hz 1P | |
| Machine power | 0.73kw | |
| Compressor power | 0.65kw/50Hz | |
| refrigerant | R410A | |
| Inlet and outlet interface size | G1" | |
| Dimensions(LxWxH) | 550mm × 450mm × 750mm | |
| Net weight | 43kg | |
| communication | RS485 (MODBUS), remote start/stop | |
Băng hình
Băng hình
Địa chỉ
Đường No. 99 Shengzhou, quận Huishan, thành phố Wuxi, tỉnh Jiangsu, Trung Quốc
Điện thoại
86-21-56420500
